IDP100 Series Specifications
April 29, 2016IDP100 SERIES, STANDARD FEATURES
April 29, 2016
IDP100 Series (Isolated DC Drive Package)
Full range of Speed/Torque Control for 1/4 – 5 HP Shunt Wound & Permanent Magnet DC Motors
General Description • Standard Features • Specifications • Model Ratings/Dimensions • Connections

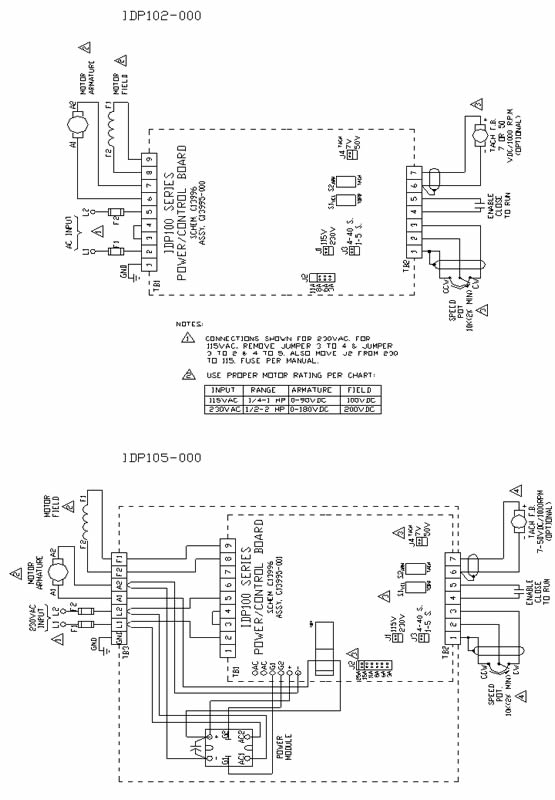

IDP102-000 Connections
IDP105-000 Connections
General Description • Standard Features • Specifications • Model Ratings/Dimensions • Connections
Back to DC Drives • Back to Product Line
IDP100 Series (Isolated DC Drives)
