February 27, 2023TROOPER® PRO Series 1/8 – 2HP DC
Motor Controls by Carotron
General Description • Specifications • Dimensions • Connections
General Description

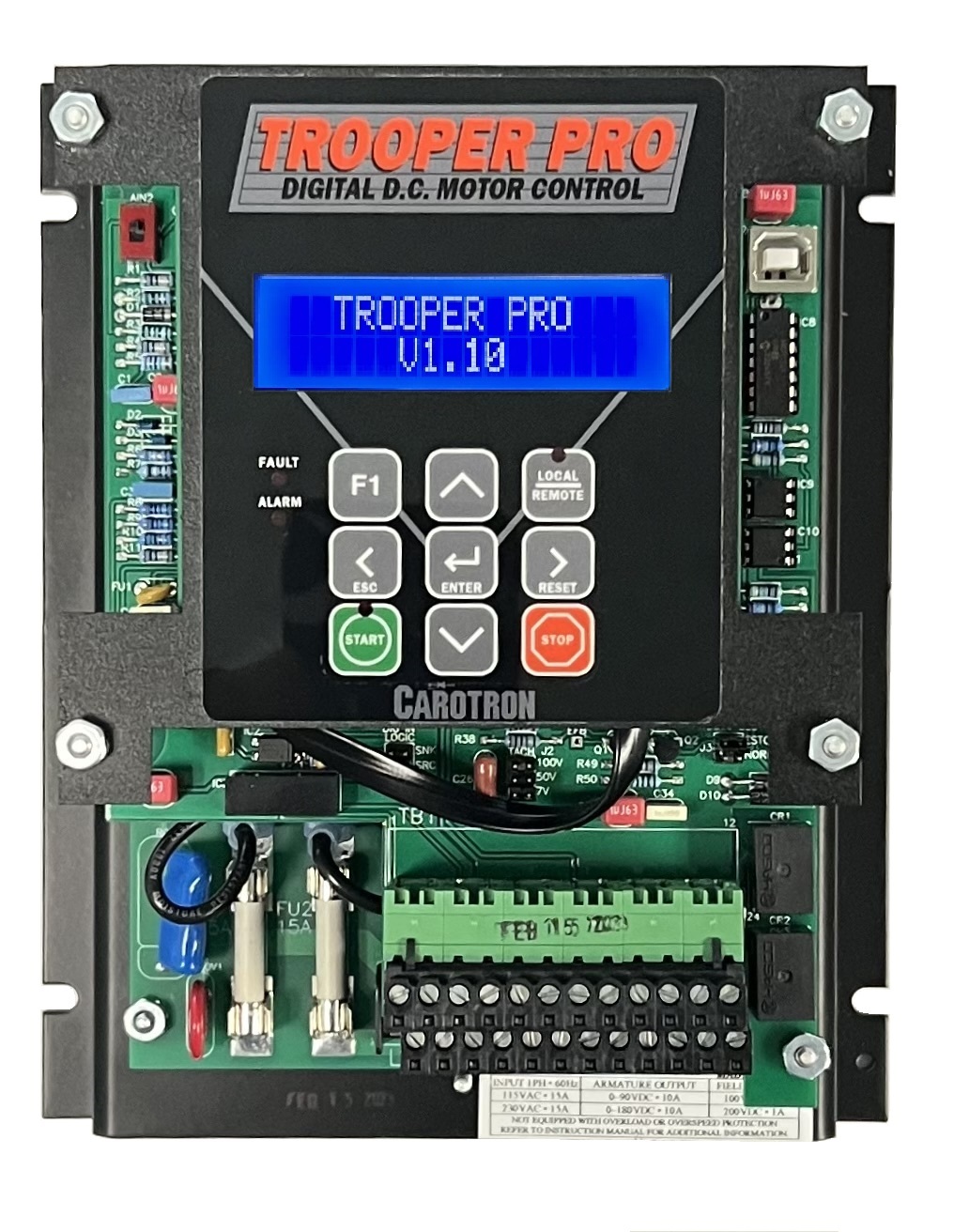

The Trooper® Pro Series is a microprocessor based D.C. motor control. The drive is currently available in a chassis version only (model TPR902-000). The series provides regenerative speed and torque control of 1/8HP-2HP D.C. motors. Some standard features are listed below:
- Operates at 115/230VAC input for 90/180VDC motor armatures
- Same footprint/package as analog Trooper® series
- 9 button keypad with 2 line by 16 character display
- USB connectivity
- Uses similar function blocks as the Elite Pro digital DC drive
- Built-in function blocks for Constant Tension Center Winder Control, Load Cell Tension Control, Center Let-off Control, and other application specific functions
- Compatible with Carotron’s free CaroLink software
- Feedback: Armature, Tachometer, or Encoder
- Feedback Loss Protection
- Electronic Motor Overload Protection
- Fault Log
- Multifunction Digital Inputs (5)
- Multifunction Analog Inputs (2)
- Multifunction Digital Outputs (2)
- Multifunction Analog Outputs (2)
- Expansion Option Port
Literature
Options
Software Tools
- CaroLink Software
- Rockwell Studio 5000 Add On Instruction (AOI)
- Rockwell Connected Components Workbench (CCW) User Defined Function Block (UDFB)
Call 1-888-286-8614 to order the Trooper Pro DC drive by Carotron or to discuss your application needs today.
