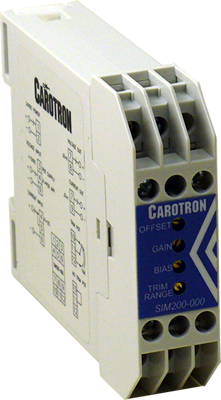

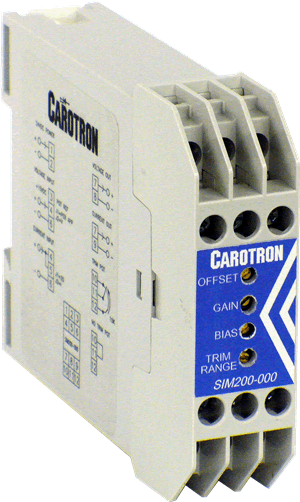

Signal Isolation Module
SIM200-000
General Description• Standard Features • Specifications • Model Ratings/Dimensions • Connections
General Description
Model SIM200-000 Signal Isolation Module is designed for applications where signal conditioning is required in a single channel, while maintaining electrical isolation between the input and output signals. Designed for a wide variety of input signals, the SIM200-000 Can accept the following types of inputs:
- Potentiometer
- D.C. Voltage
- D.C. Current
Each input signal is conditioned by scaling circuits which can be modified via multi-turn OFFSET, BIAS, and GAIN potentiometer adjustments. Terminal strip connections are provided for an optional external TRIM pot. A multi-turn TRIM RANGE adjustment is also supplied to limit the range of the external TRIM pot. The output circuit can be configured to source either a voltage or current. Typical output ranges are 0 to ±10 VDC, 0 to 20 mADC, or 4 to 20 mADC.
Literature
Drawings
- Physical (2D)
- Physical (3D)
For more information about this product,
call 1-888-286-8614 or e-mail us today!
